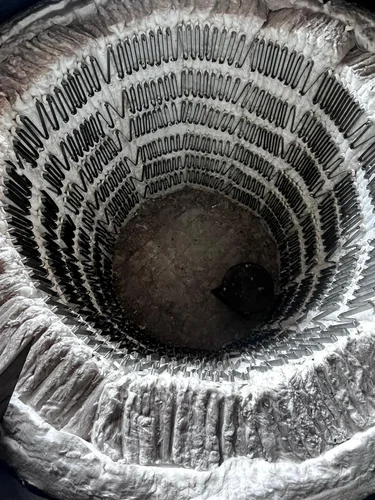

Furnace Strip Heater - Image 3 - Industrial Heating Element by Subhot Enterprises

3 Images Available - Click to View Full Size

Key Features & Benefits

Ultra-fast response enabling heat-up in seconds

Uniform infrared radiation across entire heating zone

Unlimited custom lengths and watt density configurations

Furnace Strip Heater

Name: Furnace Strip Heater
Brand: Subhot Enterprises
SKU: FURNACE-STRIP-HEATER
Availability: InStock

Furnace Heaters Made in India ISO 9001:2015

Furnace Strip Heaters represent advanced open-circuit heating technology featuring precision-engineered FeCrAl Super, SAPM, FeCrAl HTM, NiCr 80/20 & NiCr 70/30 resistance wire configured in sophisticated zig-zag patterns and permanently bonded onto high-density ceramic substrates for superior direct infrared radiation heating performance. These innovative heating elements are specifically designed for applications requiring rapid thermal response, precise temperature control, and uniform heat distribution across extended heating zones.

The revolutionary low thermal mass design enables exceptionally fast heat-up and cool-down characteristics, providing precise temperature control capabilities when integrated with advanced SSR/SCR control systems. This rapid thermal cycling capability makes these heaters ideal for applications requiring frequent temperature changes, precise thermal profiles, and energy-efficient heating cycles.

Manufactured using premium-grade resistance wire materials including high-performance NiCr alloys and specialized FeCrAl compositions, these heating elements deliver consistent thermal performance across extreme operating temperature ranges up to 1100°C. The precision zig-zag wire configuration ensures uniform heat distribution while optimizing electrical characteristics and thermal efficiency.

Advanced ceramic substrate technology utilizing 99% alumina boards provides exceptional thermal shock resistance, superior electrical insulation, and mechanical stability under extreme temperature cycling conditions. The high-density ceramic construction ensures dimensional stability and thermal performance consistency throughout the operational temperature range.

Engineering excellence includes precision-machined terminal connections, specialized mounting configurations for diverse installation requirements, and optional protective coatings for enhanced environmental resistance. Custom manufacturing capabilities enable unlimited design flexibility including specific lengths, watt densities, wire patterns, and mounting configurations optimized for unique furnace applications requiring reliable high-temperature heating performance.

Ready to Order?

Get your custom quote today with expert recommendations

Components of Furnace Strip Heater

Advanced Ceramic Substrate Technology

Ultra-high density 99% alumina ceramic boards providing exceptional thermal shock resistance, superior electrical insulation, and dimensional stability under extreme temperature cycling.

Precision Resistance Wire Element

High-performance NiCr or FeCrAl alloy wire with precision diameter control and optimized metallurgy ensuring accurate watt density distribution and consistent thermal performance.

High-Temperature Bonding System

Advanced high-temperature ceramic adhesive permanently securing resistance wire to substrate without performance degradation or thermal cycling failure.

Professional Terminal Assembly

Precision-engineered stainless steel or Inconel terminal pins providing robust electrical connections, thermal expansion accommodation, and installation convenience.

Custom Mounting System

Pre-engineered mounting holes and bracket systems enabling secure installation onto frames, platens, or furnace surfaces with thermal expansion accommodation.

Enhanced Protection Coatings

Optional advanced silica-based protective coatings providing enhanced abrasion resistance, chemical compatibility, and extended operational life in demanding environments.

Technical Specifications

Detailed technical specifications for Furnace Strip Heater with industry-leading performance standards

Product Specifications

Complete technical details and performance parameters

Parameter	Specification	Industry Standard	Advantage
Substrate Material Primary specification	99% Alumina ceramic boards (high-density) Premium quality	Grade A materials	Premium grade alloys
Resistance Wire Materials	FeCrAl Super, SAPM, FeCrAl HTM, NiCr 80/20 & NiCr 70/30 alloy wire Premium quality	Grade A materials	Premium grade alloys
Wire Configuration	Precision zig-zag patterns with optimized geometry	Standard specification	Enhanced performance
Maximum Watt Density	Up to 25 W/cm² (application and cooling dependent)	Industry average	Optimized performance
Operating Temperature	Up to 1300°C (2372°F) continuous operation High performance	±5°C tolerance	Superior heat control
Voltage Range	120–480V AC/DC (custom configurations available)	IEC standards	Global compatibility
Power Range	500W to 15+ kW (size and configuration dependent)	Standard range	Maximum efficiency
Substrate Thickness	2–6mm ceramic boards (application optimized)	Standard specification	Enhanced performance
Terminal Materials	Stainless steel or Inconel connection pins Premium quality	Grade A materials	Premium grade alloys
Thermal Response	Ultra-fast heat-up in seconds	Standard specification	Enhanced performance
Control Compatibility	SSR, SCR, contactor, RTD feedback systems	Standard specification	Enhanced performance
Mounting Options	Custom brackets, frames, and installation hardware	Standard specification	Enhanced performance
Environmental Resistance	Thermal shock, vibration, and chemical resistance	Standard specification	Enhanced performance
Customization Options	Unlimited sizes, patterns, and configurations	Standard specification	Enhanced performance

All specifications are subject to customization based on application requirements.

Superior performance

Proven reliability

271+ successful installations

Trusted Across Industries

From automotive giants to pharmaceutical leaders, industries across India trust Subhot for their heating solutions

Steel & Metal

Automotive

Chemical

Food & Beverage

Pharmaceutical

Research Labs

Key Features & Benefits

Experience the superior features that make Furnace Strip Heater the preferred choice for industrial heating

Ultra-rapid thermal cycling with minimal temperature overshoot

Precise temperature control for consistent results.

Exceptional uniform surface emissivity for consistent heating patterns

Even heat distribution across surface.

Ultra-low thermal mass reducing energy consumption and cycle times

Quality engineering for reliable performance.

Versatile mounting capabilities on flat and contoured surfaces

Flexible mounting options for any space.

Extended service life with stable wire-to-substrate retention

Durable construction for long-lasting service.

Custom heating patterns enabling targeted heating zone control

Easy-to-use digital control systems.

Superior thermal shock resistance for demanding cycling applications

Quality engineering for reliable performance.

Advanced ceramic substrate technology ensuring dimensional stability

Quality engineering for reliable performance.

Precision-engineered terminal connections for reliable electrical performance

Quality engineering for reliable performance.

Optional protective coatings for enhanced environmental resistance

Quality engineering for reliable performance.

Comprehensive customization including unlimited sizes and configurations

Quality engineering for reliable performance.

Integration compatibility with advanced control and automation systems

Easy-to-use digital control systems.

Professional technical support and application engineering services

Quality engineering for reliable performance.

Global availability with international certifications and compliance

Quality engineering for reliable performance.

Frequently Asked Questions

What is a Furnace Strip Heater and how does it provide fast-response heating?

A Furnace Strip Heater is an advanced open-circuit electric heating element featuring precision resistance wire arranged in zig-zag patterns on high-density ceramic substrates for direct infrared radiation heating applications. The ultra-low thermal mass design enables heat-up in seconds, rapid temperature changes, and precise thermal control making it ideal for industrial furnaces, kilns, and applications requiring fast thermal cycling.

What are the key advantages of zig-zag wire configuration over traditional heating elements?

Zig-zag wire patterns provide significantly increased surface area, faster heat-up response times, superior heat transfer efficiency, and improved thermal uniformity compared to round wire elements. The ribbon-like configuration reduces electrical resistance fluctuations and delivers more consistent radiant heating performance with enhanced energy efficiency and precise temperature control.

Where are Furnace Strip Heaters most commonly used in industrial applications?

These heaters are extensively used in industrial furnaces, kilns, high-temperature ovens, powder coating systems, heat treatment chambers, air duct heaters, and specialized heating applications requiring high watt density, fast thermal response, and uniform radiant heating across industries including manufacturing, automotive, aerospace, and advanced materials processing.

What materials are used in construction and what temperature ranges are achievable?

Construction utilizes premium NiCr 80/20 or FeCrAl alloy resistance wire bonded to 99% alumina ceramic substrates with high-temperature ceramic mounting frames. Operating temperatures reach 1100–1300°C depending on material selection and furnace environment with exceptional thermal cycling capability and dimensional stability.

What maximum operating temperatures can these heaters achieve safely?

Furnace Strip Heaters operate continuously up to 1300°C (2372°F) depending on wire material selection, substrate specifications, and environmental conditions. Specialized high-temperature configurations enable even higher temperatures for demanding applications including advanced ceramics processing, metallurgical heat treatment, and research furnace applications.

Are these heaters suitable for forced air and convection heating applications?

Yes, Furnace Strip Heaters are ideally suited for forced air, convection heating, and air circulation systems due to their high surface area, rapid thermal response, and efficient heat transfer characteristics. The low thermal mass design provides immediate response to airflow changes while delivering consistent temperature control in dynamic heating environments.

Can Subhot manufacture custom sizes, shapes, and configurations?

Yes, Subhot specializes in comprehensive custom manufacturing including specific dimensions, unique wire patterns, custom watt densities, specialized terminal configurations, and application-specific mounting layouts based on your furnace design, thermal requirements, and installation constraints with complete engineering support and prototyping services.

How are these heaters mounted and installed in furnace systems?

Installation utilizes specialized refractory support systems, precision ceramic mounting brackets, and metallic frame assemblies with spring-loaded tensioning to accommodate thermal expansion. Mounting methods include screw-down installation onto furnace walls, suspended mounting from overhead supports, and integration into heating zone assemblies with proper electrical isolation and thermal protection.

What watt density range and power capabilities do these heaters provide?

Watt density typically ranges from 5 to 25 W/cm² enabling rapid, uniform heating while maintaining extended element life. Power capabilities range from 500W to 15+ kW depending on heater size and configuration with optimal loading calculations ensuring maximum service life while delivering required thermal output for specific furnace and process requirements.

Can these heaters operate in reducing atmospheres or vacuum conditions?

Yes, with proper material selection, NiCr alloys perform excellently in vacuum and inert atmospheres while FeCrAl alloys are optimized for oxidizing environments. Specialized configurations accommodate protective atmospheres, controlled gas environments, and vacuum applications where material compatibility and atmosphere management are critical for reliable operation.

Are Furnace Strip Heaters energy efficient compared to other heating methods?

Yes, exceptional energy efficiency results from rapid thermal response, minimal thermal mass, higher effective surface area, and direct radiant heat transfer. Fast heat-up eliminates energy waste during temperature changes while direct radiation provides superior thermal transfer efficiency compared to tubular or block heating elements in similar applications.

Can individual elements be repaired or replaced during operation?

Yes, modular design enables replacement of individual ribbon elements or support components without complete system shutdown. Subhot provides comprehensive repair and replacement solutions including custom configurations, retrofit services, and maintenance programs ensuring minimal downtime and continued operational efficiency.

Do these heaters integrate with automation and advanced control systems?

Absolutely, Furnace Strip Heaters integrate seamlessly with thyristor-based power controllers, advanced PID temperature regulation systems, over-temperature protection devices, and industrial automation networks. Fast thermal response enables precise temperature control and advanced thermal profiling in automated manufacturing and process control applications.

What is the expected service life under continuous industrial operation?

Service life ranges from 3,000 to 10,000+ operating hours depending on temperature cycling frequency, operating conditions, and environmental factors. Proper installation, appropriate control systems, and operation within design parameters significantly extend operational life while premium materials and precision manufacturing ensure consistent performance.

Are Subhot Furnace Strip Heaters available for international markets?

Yes, Subhot Enterprises exports globally offering CE-compliant heaters for OEMs, furnace manufacturers, and industrial users worldwide. Comprehensive international support includes custom documentation, technical specifications, and application engineering for global customers requiring reliable high-temperature heating solutions.

How can I request custom Furnace Strip Heaters for my specific application?

Contact our specialists at +91-9999710410 or email sales@subhotheaters.com with your requirements including furnace dimensions, operating temperature, atmosphere conditions, power requirements, and installation constraints. Our application engineers provide comprehensive design support, custom manufacturing, and competitive pricing for your high-temperature heating requirements.
