Bundle Rod Heater

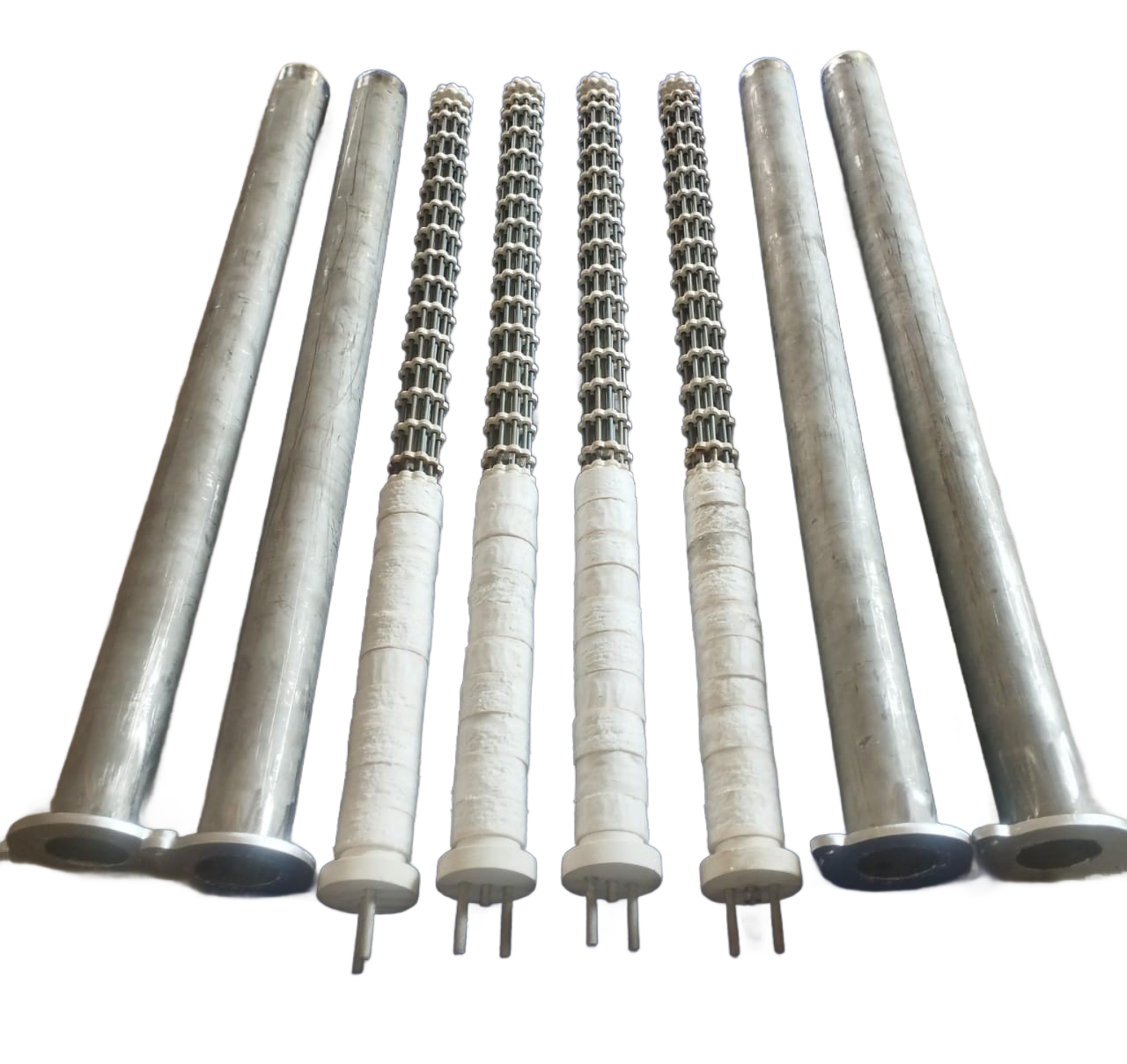

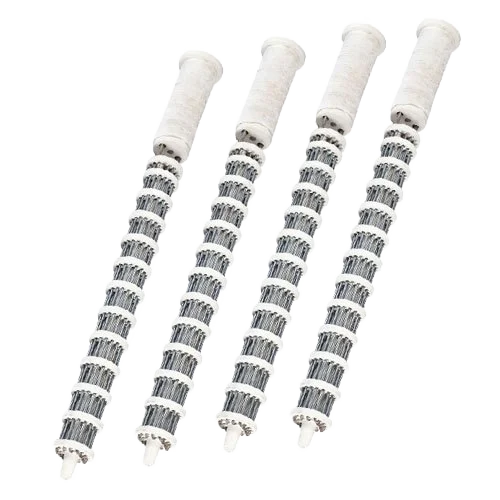

Bundle Rod Heaters are premium industrial heating elements specifically engineered for high-temperature furnaces and heavy-duty thermal processing applications. These advanced rod type heating elements feature a sophisticated construction comprising multiple terminal rods, a central support rod, and precision-engineered ceramic discs that form an efficient heating bundle capable of withstanding extreme operational demands.

Manufactured using superior ferrous alloy powder metallurgical elements, including FeCrAl Super, SAPM, FeCrAl HTM, NiCr 80/20 & NiCr 70/30 heating materials, these high temperature rod heaters deliver exceptional thermal performance, uniform heat distribution, and remarkable durability under continuous operation up to 1250°C. The rod bundle heater design incorporates SS 310 or Incoloy support rods and terminals, complemented by high-purity alumina ceramic discs and ceramic fiber components for superior structural integrity.

These high power rod heaters are available in an extensive power range from 1 kW to 75 kW, making them suitable for diverse industrial applications including primary aluminum holding and melting furnaces, galvanizing furnaces in steel industries, automotive heat treatment processes, annealing furnaces, carburizing furnaces, and sealed quench furnaces (SQF). The industrial rod heating bundle technology ensures optimal watt density distribution of 1 to 10 W/cm² with precise cold resistance tolerance of ≤3%.

Key advantages of these furnace rod heaters include their ability to operate in both horizontal and vertical mounting configurations, providing exceptional design flexibility for various furnace layouts. The advanced metallurgy and robust construction deliver significantly longer working life compared to conventional heating systems while maintaining consistent performance throughout their operational cycle.

As an environmentally conscious thermal oil heater alternative, Bundle Rod Heaters substantially reduce CO₂ emissions by eliminating flue gases associated with combustion-based systems. Their higher thermal efficiency minimizes energy consumption and heat losses, making them an ideal choice for industries seeking sustainable heating technologies without compromising operational performance. The heaters feature convenient temperature control capabilities, simplified assembly procedures, and reduced maintenance requirements, ensuring cost-effective long-term operation.
